CYCLUS2 Ergometer -Recumbent Concentric
CY00200
CYCLUS2 SPRINT CONCENTRIC
The Cyclus2 Recumbent is designed for applications in which the subject is not sitting on a bike, but in a semi-recumbent position.
In sports science, this is interesting, for example, when comparative studies of eccentric training are to be carried out in exactly the same cycling position.
The semi-recumbent seating position on the Cyclus2 Recumbent is also an alternative for non-cyclists or seniors. The Cyclus2 Recumbent has high accuracy and allows for different types of loads, such as power, torque and isokinetic riding. All types of load can be combined by the user in freely programmable load profiles.
The recumbent ergometer can be connected with CPET or ECG systems.
All common tests such as the incremental test, Wingate test, maximum cadence test and isokinetic maximum strength test are already integrated, including a professional evaluation.
Users of CPET or ECG systems can connect them with the Cyclus2.
When compared to other ergometers, athletes repeatedly rate the very pleasant, realistic riding experience on the Cyclus2, which is very close to riding on the road, as outstanding. This property is particularly important for physiologically accurate test results and for ergometer training.
The Cyclus2 Standard can be stored in a sturdy, compact transport case and is therefore also suitable for mobile performance analysis and training.
Product Video
Product Details
Cylus2 Standard Concentric Technical DetailsPower Accuracy (Up to 100 W): +/- 2 Watts
Power Accuracy (greater than 100 W): +/- 2%
Workload Range: 40 - 3,000 W
Cadence Accuracy: 1 RPM
Minimum Cadence: 30 RPM
Maximum Cadence: 300 RPM
Integrated Tests: Incremental, Wingate, Maximum Strength, Maximum Cadence, PWC
10.4" Color Display
Generate and Edit Load Profiles for Users
Load Modes: Power, Torque, Simulation (Drag, Rolling Friction, Downhill Force), Isokinetic
Integrated Tests: Incremental, Wingate, Maximum Strength, Maximum Cadence, PWC
External Control: CPET, ECG, Training Apps
Connect Via:
Bluetooth 5.2
Ethernet 10/100 Mbit
USB 2.0
RS232
Wifi WLAN (802.11g) - Optional
Bluetooth FTMS
Ergoline (RS232)
Ergoline (Winsocket)
Cyclus2 Protocol (RS232)
Cyclus2 Protocol (Winsocket)
Shimano Freehub Body
11 Speed Cassette
Convertible for Campagnolo Freehub Body
Front Leg: 100 mm (quick release)
Brake Unit: 130 / 135 mm (quick release)
Convertible for Through Axle
Convertible for Single Speed
Convertible for Freewheel Hub with Cassette
Floor Space: 55" L X 20" W
77 lbs
100-240V AC 50-60 hz
Standard Wall Outlet
1 Year
Because of its high accuracy and flexible load control, the Cyclus2 is ideal for use in performance analysis.
All common tests such as the incremental test, Wingate test, maximum cadence test and isokinetic maximum strength test are already integrated, including a professional evaluation.
In addition, the Cyclus2 can also be controlled by CPET and ECG systems.
Test results are physiologically very accurate on the Cyclus2 standard because the test subject is tested on his or her own training or competition bike.

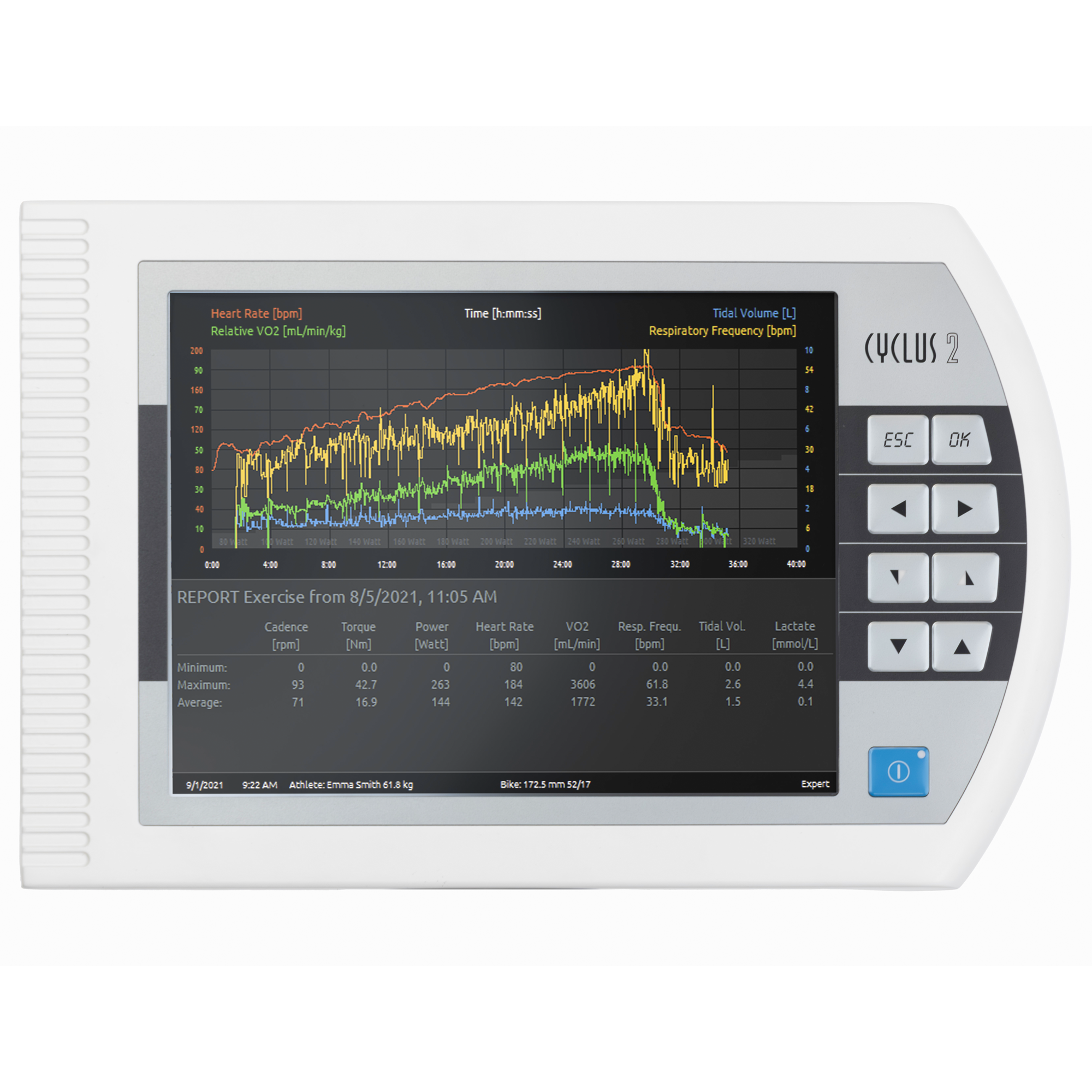

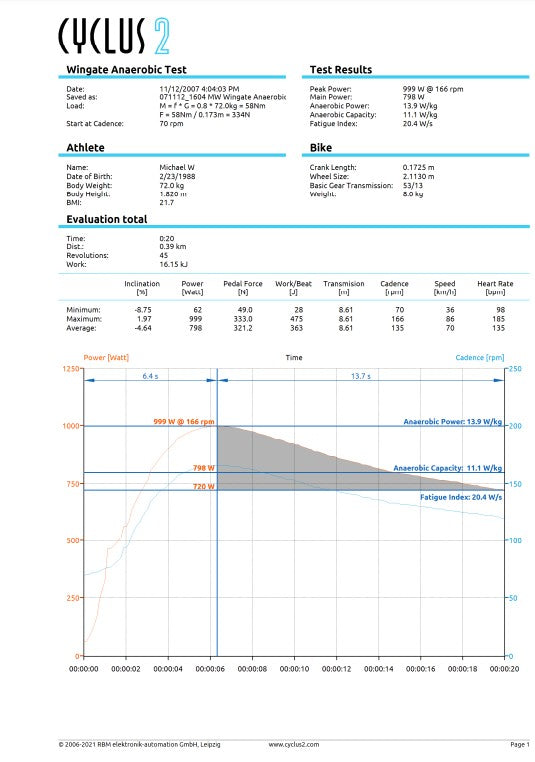

After tests or training have been completed, the evaluations are clearly presented on the Cyclus2 display and can be printed or saved electronically as a PDF if desired.
The Cyclus2 can continuously record all data generated during ergometry at selectable time intervals.
The recorded data can be exported into common formats such as FIT or CSV for further scientific use and can therefore be easily synchronized with each other.
Load Modes: Power, Torque, Simulation (Drag, Rolling Friction, Downhill Force), Isokinetic
Integrated Tests: Incremental, Wingate, Maximum Strength, Maximum Cadence, PWC
External Control: CPET, ECG, Training Apps

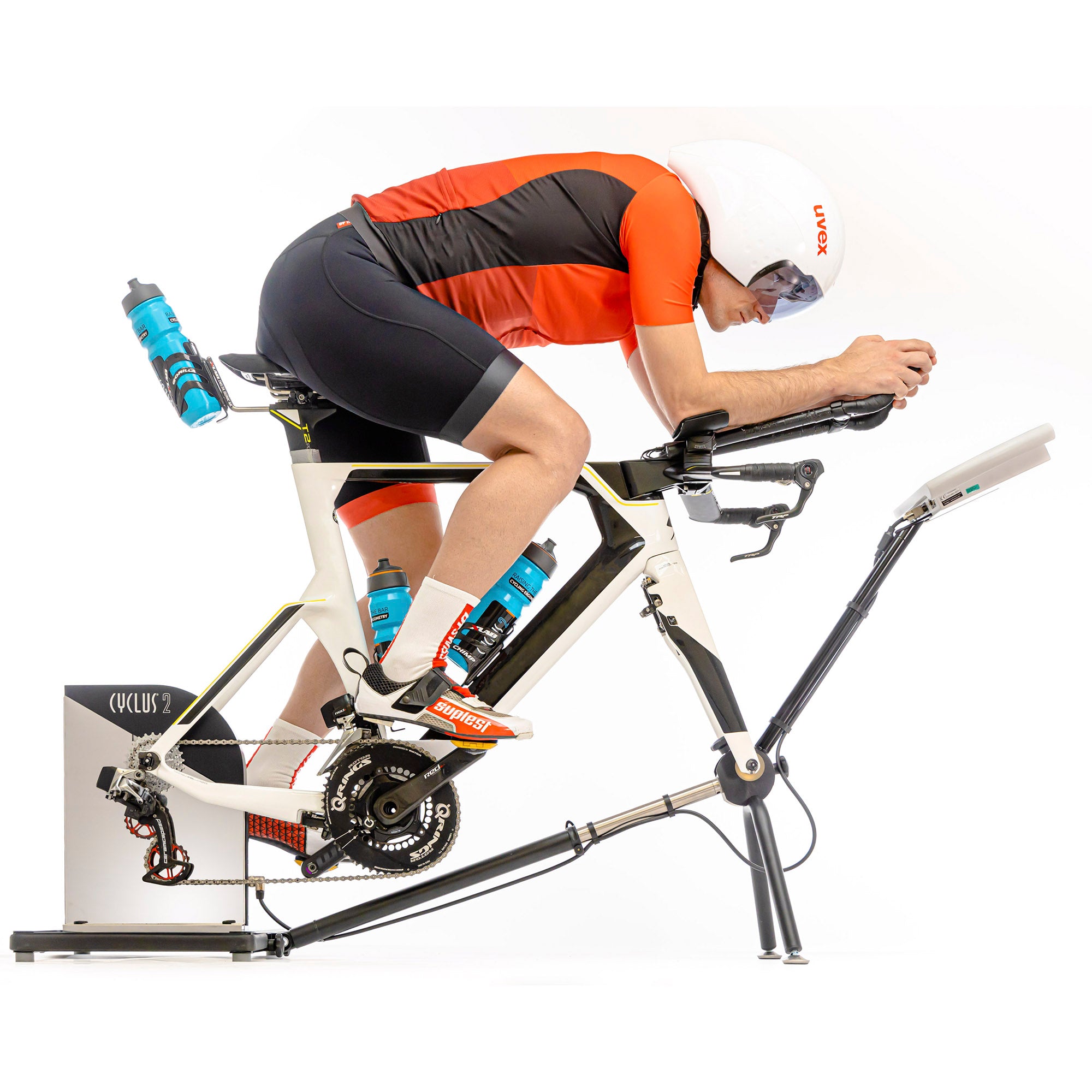

Ergometer training on the Cyclus2 is the most effective supplement to cycling training on the road. Many cyclists, mountain bikers and triathletes, including Olympic and world champions, use the Cyclus2 as their training ergometer.
The patented elastic mounting of your own bike in the Cyclus2 leads to realistic riding comfort and thus also enables long training sessions. Even the highest load changes during interval training are implemented precisely without delay. To simulate real competition or training routes, the Cyclus2 has a route simulation feature that precisely calculates all parameters and simulates the physical correlations between them in real time.
Training platforms such as Zwift can also be used with the Cyclus2.
More and more physiological parameters of athletes are being measured with sensors. In addition to the heart rate, it is now also possible to include oxygen saturation in the muscle, core body temperature, lactate and oxygen intake in the evaluation of ergometry.
Sensors such as heart rate monitors, power meters, MOXY, VO2 Master Pro, Lactate Scout, Lactate Express and Body Core Temperature Sensor can be connected directly to the Cyclus2 via Bluetooth LE. All data from these external sensors can also be displayed and exported on the control unit in relation to other data.
Bike manufacturers are continually developing their bikes and there are many changes.

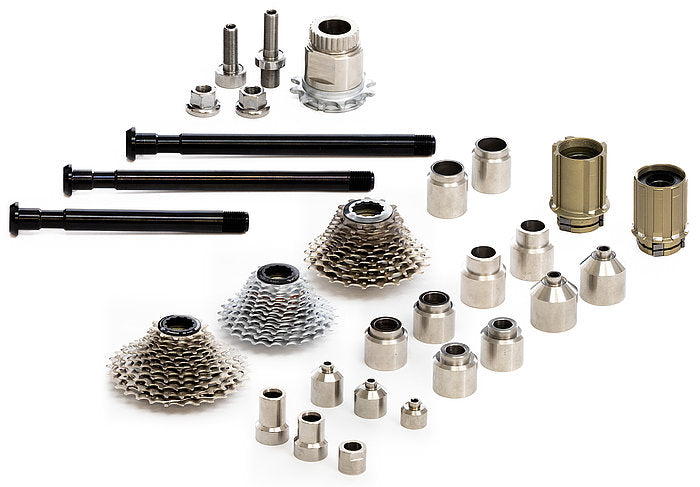

Our developers aim to ensure that all common bikes can always be used on the Cyclus2. With the accessories offered, the user can easily and quickly convert the mechanical mounts between the quick release and the various through axle systems. The sprocket cassettes can also be replaced by the user.
The Cyclus2 is therefore a future-proof investment.
Because of its high accuracy and flexible load control, the Cyclus2 is ideal for use in performance analysis.
All common tests such as the incremental test, Wingate test, maximum cadence test and isokinetic maximum strength test are already integrated, including a professional evaluation.
In addition, the Cyclus2 can also be controlled by CPET and ECG systems.
Test results are physiologically very accurate on the Cyclus2 standard because the test subject is tested on his or her own training or competition bike.
After tests or training have been completed, the evaluations are clearly presented on the Cyclus2 display and can be printed or saved electronically as a PDF if desired.
The Cyclus2 can continuously record all data generated during ergometry at selectable time intervals.
The recorded data can be exported into common formats such as FIT or CSV for further scientific use and can therefore be easily synchronized with each other.
Load Modes: Power, Torque, Simulation (Drag, Rolling Friction, Downhill Force), Isokinetic
Integrated Tests: Incremental, Wingate, Maximum Strength, Maximum Cadence, PWC
External Control: CPET, ECG, Training Apps
Ergometer training on the Cyclus2 is the most effective supplement to cycling training on the road. Many cyclists, mountain bikers and triathletes, including Olympic and world champions, use the Cyclus2 as their training ergometer.
The patented elastic mounting of your own bike in the Cyclus2 leads to realistic riding comfort and thus also enables long training sessions. Even the highest load changes during interval training are implemented precisely without delay. To simulate real competition or training routes, the Cyclus2 has a route simulation feature that precisely calculates all parameters and simulates the physical correlations between them in real time.
Training platforms such as Zwift can also be used with the Cyclus2.
More and more physiological parameters of athletes are being measured with sensors. In addition to the heart rate, it is now also possible to include oxygen saturation in the muscle, core body temperature, lactate and oxygen intake in the evaluation of ergometry.
Sensors such as heart rate monitors, power meters, MOXY, VO2 Master Pro, Lactate Scout, Lactate Express and Body Core Temperature Sensor can be connected directly to the Cyclus2 via Bluetooth LE. All data from these external sensors can also be displayed and exported on the control unit in relation to other data.
Bike manufacturers are continually developing their bikes and there are many changes.
Our developers aim to ensure that all common bikes can always be used on the Cyclus2. With the accessories offered, the user can easily and quickly convert the mechanical mounts between the quick release and the various through axle systems. The sprocket cassettes can also be replaced by the user.
The Cyclus2 is therefore a future-proof investment.
