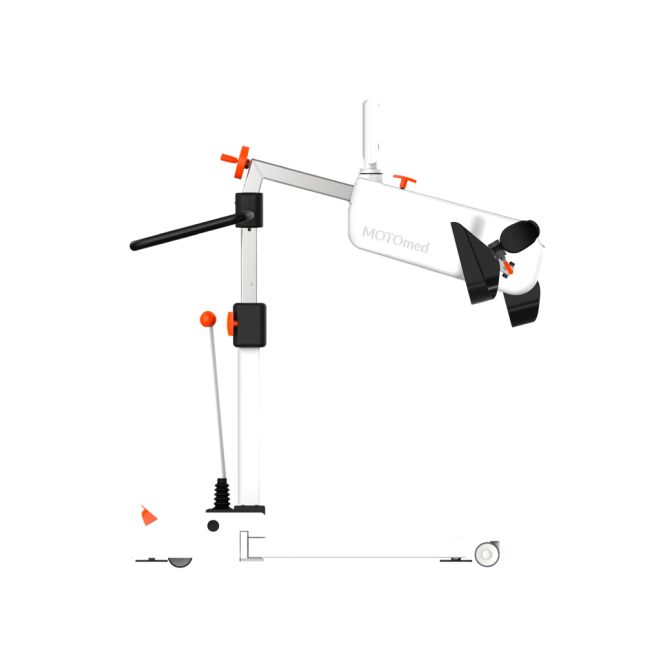

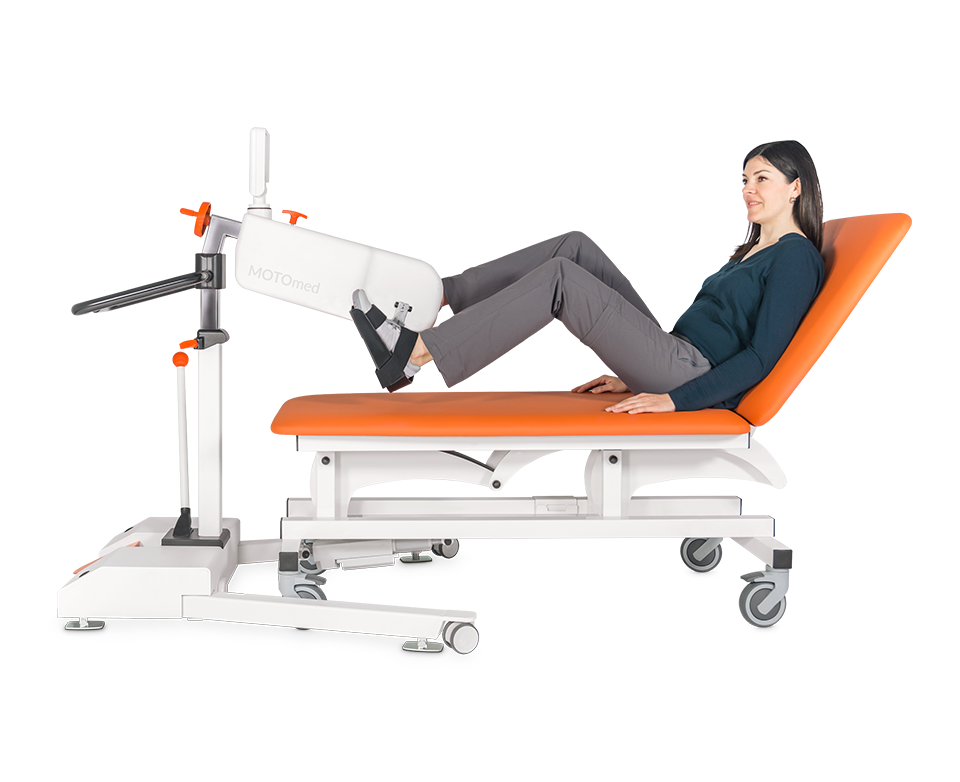

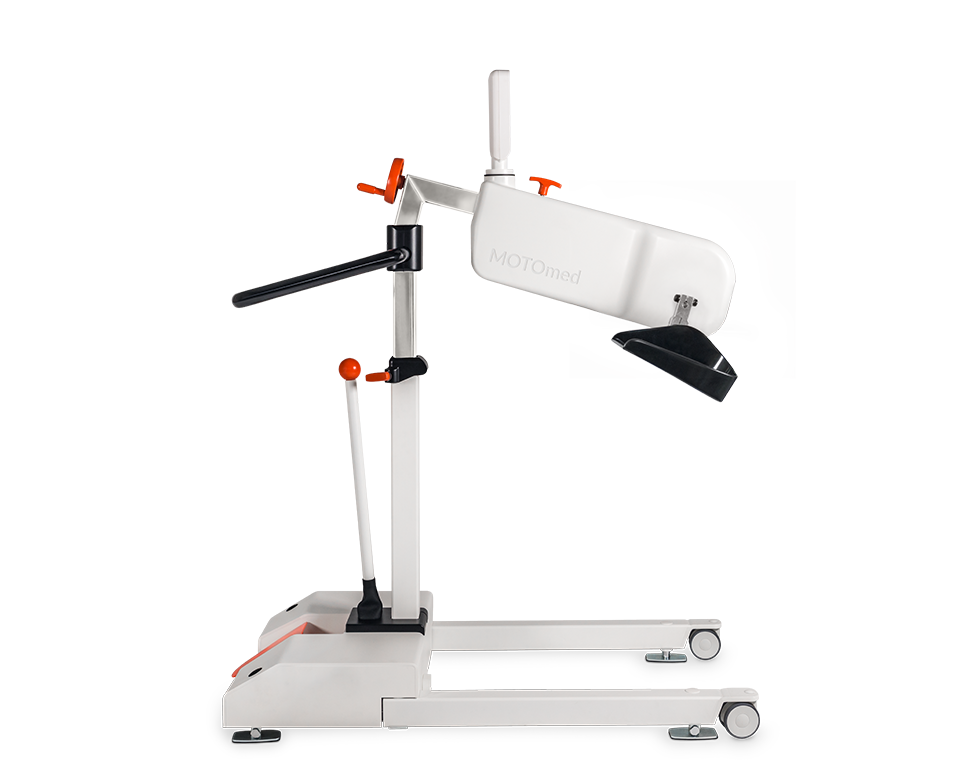

The MOTOmed layson.la impresses with its unique user-friendly design. Orange-colored operating elements clearly show users where settings can be made. This means that the MOTOmed layson.la can be optimally adapted to the individual requirements of the user in a safe manner and in just a few steps. The option of therapy modes as well as pre-installed therapy programs enable effective training, which can be performed safely and independently thanks to the "MovementProtector" with adaptive "SpasmControl".

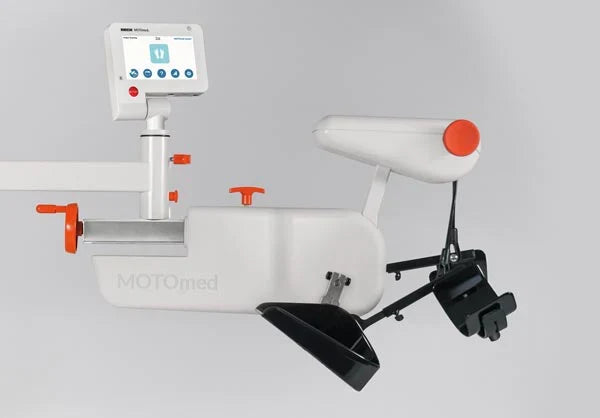

The large color touch display makes it easy to set programs and training parameters. During the training session, users receive information about the current training via various biofeedback displays, and at the end of the training session the evaluation is clearly displayed there. The handling of the 7'' color touch display is intuitive and easy to understand, so that training can be started quickly and without complications.

With the removable operating panel, users can follow their training success themselves and make settings independently.

The MOTOmed next generation models offer special added value: During training, digital photos from family and friends or memories of special moments can be virtually experienced with the MOTOmed slideshow. Looking at the pictures gives movement therapy an additional, emotional value.

Thanks to the modern hygiene concept, which enables optimal disinfection, the MOTOmed layson.la can be effectively and efficiently integrated into everyday clinical and nursing routine.

• Therapy programs
• Games and videos
• Slideshow
• Removable Display

Standard Features

• Plastic-coated safety foot shells with disinfectable fastening straps and quick release system (pair, incl. pedal cranks)
• Plastic-coated handles with quick release system (pair)
• Gas spring support for height adjustment
• Selectable parallel chassis or expandable chassis with ground fixation
• Knee bending adjustment incl. adjustment wheel
• Colour touch display (7"), rotatable, inclinable*²
• Quick release system for foot shells and handles*¹
• Pedal radius: 7 cm
• Sturdy metal construction, high quality and stable
• Closed plastic body (PC/ABS), easy to clean and disinfect
• Easily movable with large castors (Ø 7.5 cm)
• Centrally operated 4-point ground fixation
• (Serial interface), USB interface
• Plastic-coated transport handle
• Patient remote control
• Color: white/chrome/black/orange

Foot Insertion Aid The insertion aid function facilitates the insertion of the feet into the foot shells before the start of the training. Using a button on the operating panel, the user can move the foot shells continuously into the appropriate position.
	MovementProtector If muscle cramp, spasticity or movement blockage (freezing) occurs during training, this function stops the pedal movement. It does not matter how the basic muscle tension changes; the MovementProtector does not remain constant, but automatically adapts to any change. As a result, it always remains optimally sensitive. This function is implemented in all MOTOmed models through a sensitive sensor system.
SpasmControl This function works closely with MovementProtector and can loosen and release detected spasms or cramps. The basis for the development of such a function is the following therapeutic principle: bending spasm is loosened by stretching and stretching spasm by bending. The automatic change of direction of rotation through the SpasmControl program can loosen the cramps detected by the movement protection. If a spasm occurs, the motor gently stops the crank movement. Legs and arms are relieved and the direction of rotation is switched following a brief resting period. This process is repeated until the spasm is relieved.	ServoCycling Similar to a bicycle with an auxiliary motor, the MOTOmed function ServoCycling (leg training) or ServoTurning (arm training) supports users in performing their active movement. The function enables the person exercising to perform an active movement even with the lowest inherent forces. Residual muscle strength can be recognized and built up without overstraining efforts.
SymmetryTraining The SymmetryTraining function unfolds its beneficial effect when it comes to specifically strengthening the weaker side. The display of the function differs depending on the model. In MOTOmed viva2, MOTOmed gracile12 and MOTOmed letto2 models, a two-scale diagram shows the users how much strength they exert with the left and the right body half. On the MOTOmed muvi as well as the MOTOmed loop edition and MOTOmed layson edition models, this function is displayed with an animated figure. Based on this graphic display, the users can target their "weaker" side of the body during training. SymmetryTraining prevents overloading of the healthy extremities.
	Training analysis All MOTOmed models provide the user with a variety of training feedback. Training values such as duration, distance, symmetry, total metabolic rate, tone, the average and maximum active performance as well as the active and passive training percentage can be viewed by the user on the screen both in real time during the training and as an overall evaluation after the training.
