Excellent digital intelligence and intuitive usability
The MOTOmed loop impresses with its unique digital intelligence and its visual appearance. Almost all models can be upgraded in terms of equipment and functionality by means of an Upgrade Bundle. The MOTOmed loop also features its unique height adjustment, with which users can adjust the height of their MOTOmed models without tools, as well as the quick and easy switch from arm to leg training. In addition, the high-quality material of the softly rounded surfaces of the MOTOmed next generation meets the high demands of hygiene management in facilities and clinics.
This also convinced the internationally renowned jury of theGerman Design Award 2019that awarded the MOTOmed loop the "Special Mention" award.

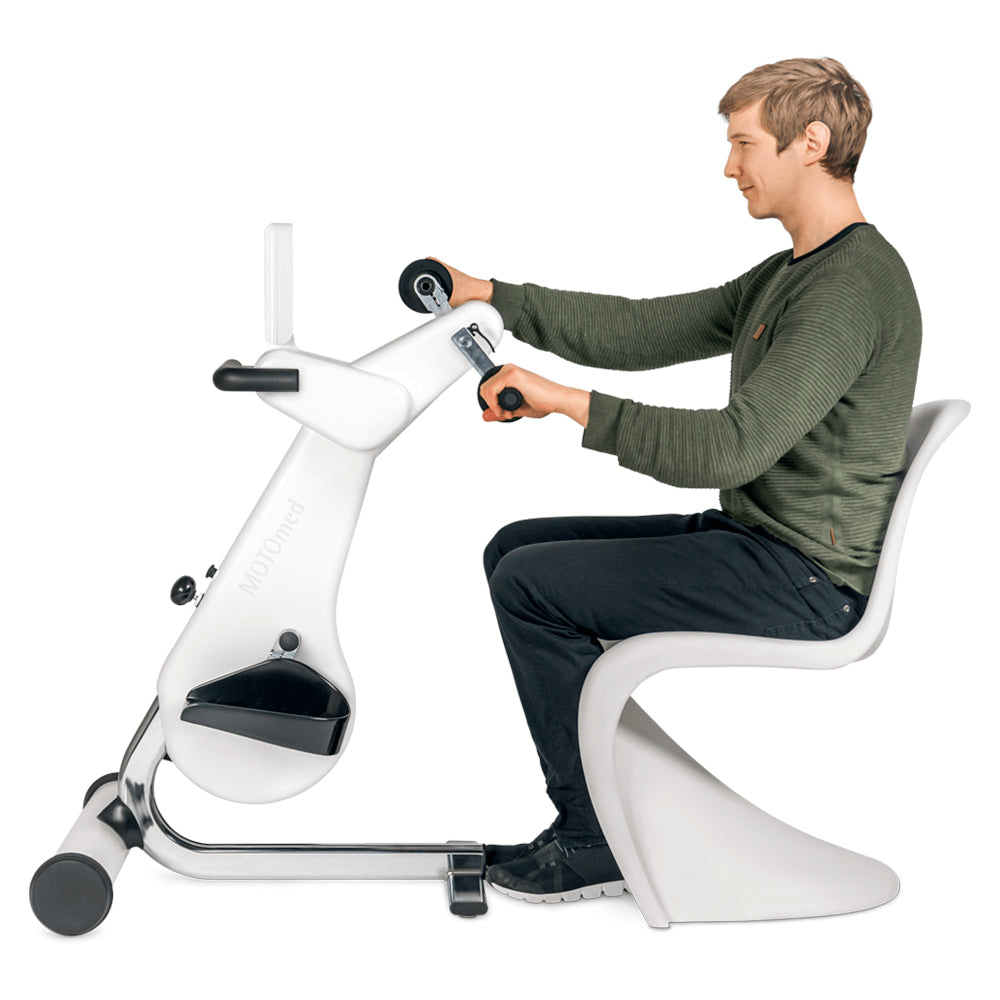

Change Between Upper and Lower Body Training
Change of training made easy: The change from arm to leg training at the MOTOmed loop.la is controlled directly on the display. The MOTOmed loop.la reacts digitally per touch and switches the training mode automatically. The new 7’’ big color touch display can be operated easily and intuitively and offers intelligent functions of innovative form. Naturally, the display is suitable for wipe disinfection.
Games and videos
Plastic-coated safety foot shells with Velcro fastening
Soft Grip handles
Height adjustment of leg or arm/upper body trainer can be adjusted without tools.
Pedal axle of the leg trainer is height adjustable from 30 cm to 45 cm.
Pedal axle of the arm trainer is height adjustable from 90 cm to 105 cm.
Color touch display (7"), retractable and inclinable.
Stable metal construction, high quality and stable.
2-stage pedal radius adjustment (7 cm or 12.5 cm).
Closed plastic body (PC/ABS), easy to clean and disinfect.
Easily movable with large transport rollers (Ø 13 cm).
Serial interface, USB interface.
Reduced device stand width to 38.5 cm.
Therapy and motivation programs
Training programs & Games
Slideshow via USB (delivered without USB stick)
Unit Dimensions (LWH)
70 x 60 x 107–122 cm / 27.5" x 23.6" x 42.1" to 48"
36 kg / 79 lbs
Maximum User Weight
135 kg / 297 lbs
7“ / 18 cm
100-240 V~ / max. 120 VA
SKU / Order Number
Foot Insertion Aid
The insertion aid function facilitates the insertion of the feet into the foot shells before the start of the training. Using a button on the operating panel, the user can move the foot shells continuously into the appropriate position.
If muscle cramp, spasticity or movement blockage (freezing) occurs during training, this function stops the pedal movement. It does not matter how the basic muscle tension changes; the MovementProtector does not remain constant, but automatically adapts to any change. As a result, it always remains optimally sensitive. This function is implemented in all MOTOmed models through a sensitive sensor system.
This function works closely with MovementProtector and can loosen and release detected spasms or cramps. The basis for the development of such a function is the following therapeutic principle: bending spasm is loosened by stretching and stretching spasm by bending. The automatic change of direction of rotation through the SpasmControl program can loosen the cramps detected by the movement protection. If a spasm occurs, the motor gently stops the crank movement. Legs and arms are relieved and the direction of rotation is switched following a brief resting period. This process is repeated until the spasm is relieved.
Similar to a bicycle with an auxiliary motor, the MOTOmed function ServoCycling (leg training) or ServoTurning (arm training) supports users in performing their active movement. The function enables the person exercising to perform an active movement even with the lowest inherent forces. Residual muscle strength can be recognized and built up without overstraining efforts.
The SymmetryTraining function unfolds its beneficial effect when it comes to specifically strengthening the weaker side. The display of the function differs depending on the model. In MOTOmed viva2, MOTOmed gracile12 and MOTOmed letto2 models, a two-scale diagram shows the users how much strength they exert with the left and the right body half. On the MOTOmed muvi as well as the MOTOmed loop edition and MOTOmed layson edition models, this function is displayed with an animated figure. Based on this graphic display, the users can target their "weaker" side of the body during training. SymmetryTraining prevents overloading of the healthy extremities.
All MOTOmed models provide the user with a variety of training feedback. Training values such as duration, distance, symmetry, total metabolic rate, tone, the average and maximum active performance as well as the active and passive training percentage can be viewed by the user on the screen both in real time during the training and as an overall evaluation after the training.
